4D Systems 4Display Shield 144

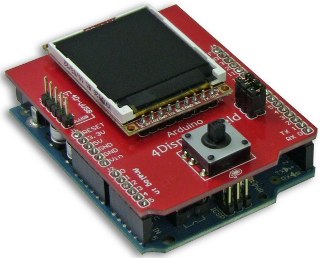

Photo: 4D Systems

Shield URL: 4Display Shield 144
Tags: display, lcd, joystick
Maker: 4D Systems

The 4Display-Shield-144 provides an easy way of interfacing the popular uOLED-144 display module to the Arduino and compatible boards. The unit comes with the uOLED-160-G1 module and a 5 way multiswitch joystick.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D0, D1: Serial comms to shield with jumpers to disconnect during sketch uploads.
D2, D3, D4, D5, D6: Joystick.
D7: Reset for shield.
