Adafruit Industries Proto Shield

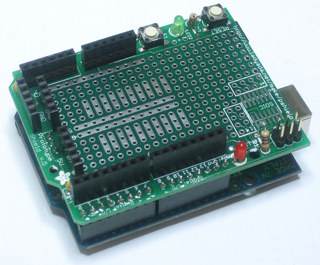

Photo: Limor Fried

Shield URL: Proto Shield
Tags:
Maker: Adafruit Industries

This shield is designed to make prototyping on your Arduino easy by giving you space to add your own parts without requiring a custom shield PCB.

  • Reset button up top.
  • ICSP header.
  • Lots of GND and +5V rails.
  • DIP prototyping area makes it easy to add more chips.
  • SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.
  • Use 'mini' or 'medium' breadboard.
  • Two 3mm LEDs with matching resistors.
  • Extra 6mm button.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No header pins are specifically reserved by the shield: all connections are available for use in the user's projects.
