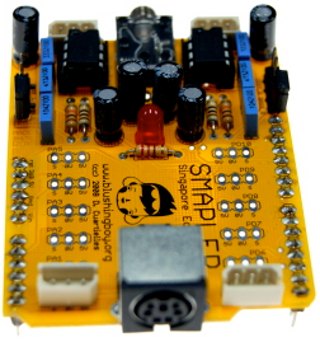

Blushing Boy Smapler Shield v2


Photo credits: unknown

Shield URL: Smapler Shield v2
Tags: audio, output, sound
Maker: Blushing Boy

Designed to make it easy to build generative music intruments, small samplers, SID instruments or digital synths.

Open Source: Unknown
License: Unknown
Source: Unknown

 I do not yet have verified pin usage data for this shield.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
