Circuit Ideas Design 3.2" Touchscreen Shield

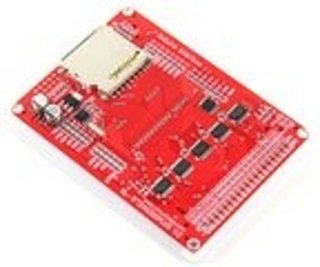

Photo: Circuit Ideas Design

Shield URL: 3.2" Touchscreen Shield
Tags: lcd, touch, sd, flash, storage, rtc
Maker: Circuit Ideas Design

Display time logger application shield.

  • TFT LCD 3.2" touch screen.
  • SD card slot.
  • RTC I2C DS1307.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A3 is free for use.
