Conductive Resistance Protoshield


Photo: Aaron Eiche

Shield URL: Protoshield
Tags: prototyping, servo
Maker: Conductive Resistance

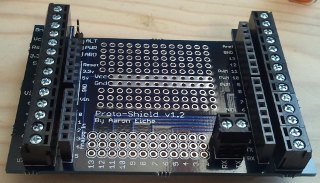

This Prototyping shield breaks out all pins on the Arduino for prototyping use in an accessible way. All pins are available with screw terminals on either side of the shield, and digital pins D2 to D13 have been made accessible via servo headers. The shield features a power select header and long-tail header plugs so it can sit nicely in an Arduino and provide additional shield compatibility. Shield also has a wide bed of prototyping vias with a set of power rails down the center.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: aaroneiche.com/downloads/

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
None of the pins are specifically reserved by the shield: all are broken out for use in user projects.
