Critical Velocity IMU Shield, 6 DOF Accel/Gyro

Shield URL: IMU Shield, 6 DOF Accel/Gyro
Tags:
Maker: Critical Velocity

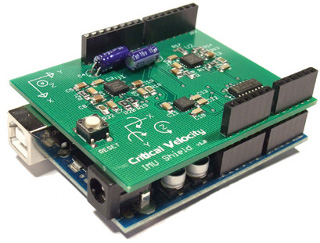

The Critical Velocity IMU (Inertial Measurement Unit) Shield provides 6 degrees of freedom - X, Y, Z acceleration, and angular yaw, pitch and roll rate sensing.

Full scale accelerometer range is +/- 3 g, and the gyroscope has a selectable range of +/- 300 deg/sec or +/ 1200 deg/sec.

• 6 Degrees of Freedom - 3 Axis Acceleration and 3 Axis Gyro.

• Digitally selectable gyroscope sensitivity - 300 or 1200 deg/sec.

• Digitally selectable gyroscope reference voltage measurement.

• Shield stacking headers and regular headers included.

• Uses Analog Devices ADXL335 3-axis accelerometer.

• Uses ST Microelectronics LY530AL and LPR530AL Gyroscopes.

Open Source: Unknown
License: Unknown
Source: Unknown
