Critter and Guitari Pocket Piano Synth Shield

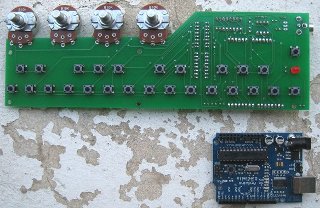

Photo: Critter and Guitari

Shield URL: Pocket Piano Synth Shield
Tags: music, audio
Maker: Critter and Guitari

This is a board for making the Arduino into a portable stand alone music synthesizer. It plugs directly into the Arduino board and provides 25 multiplexed keys (2 full octaves), 4 pots, status LED, reset switch, digital to analog converter IC, and a RCA audio jack.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2: multiplexer select C
D3: multiplexer select B
D4: multiplexer select A
D5: multiplexer 2 output
D6: multiplexer 1 output
D7: multiplexer 0 output
D8: LED
D9: DAC select
D10: 25th button
D11: DAC data in
D13: DAC clock
A0: knob 0
A1: knob 1
A2: knob 2
