Curious Inventor Stribe Multiplexer Shield

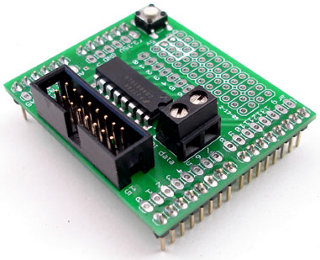

Photo: Curious Inventor

Shield URL: Stribe Multiplexer Shield
Tags: analog, input
Maker: Curious Inventor

Based on the 4051 analog switch, this Shield lets you read up to 13 analog channels, and provides the connections for the Stribe1 ribbon cable and data line (screw terminal). Comes as a kit.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: www.curiousinventor.com/code/stribe/s...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
