CuteDigi GPS Shield With SD Card

Shield URL: GPS Shield With SD Card
Tags: gps, sd
Maker: CuteDigi

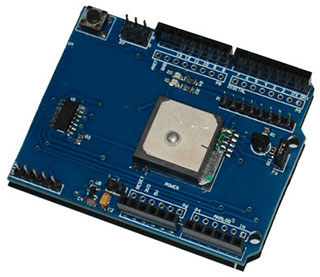

This is the GPS SR92 module for Arduino with a SD card slot.
CuteDigi

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic and PCB layout provided as PDF only. No source files available.

Note:
The GPS needs to be jumpered to the shield.

Pin 1: GND
Pin 2: VCC Power supply of 3.3 ~ 3.5 VDC
Pin 3: TX Port A serial data output (GPS out); N-8-1, NMEA v3.00 output
Pin 4: RX Port A serial data input (GPS in); N-8-1, accepts commands from external applications, e.g. SiRFDemo.
Pin 5: 5 PWR_CTRL Hardware controlled power saving pin.
