DFRobot Graphic LCD4884 Shield

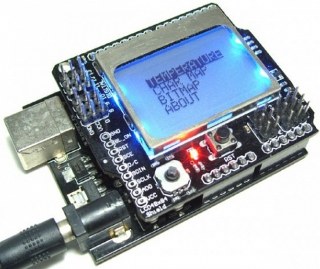

Photo: DFRobot

Shield URL: Graphic LCD4884 Shield
Tags: lcd, display, graphic
Maker: DFRobot

The LCD4884 Shield provides a 48x48 pixel display. It is able to display English, Chinese, and images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
SPI Interface uses pins D2, D3, D4, D5 and D6.
One 5 degree joystick using A0.
The LCD backlight control uses D7.
