Excamera Labs Gameduino Shield

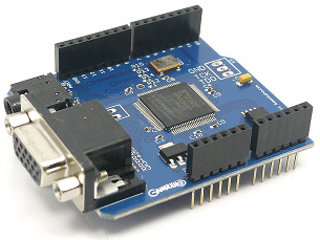

Photo: James Bowman

Shield URL: Gameduino Shield
Tags: video, output, audio
Maker: Excamera Labs

For 8-bit game creation. Sprites, scrolling, stereo sound. VGA and stereo connectors.

Open Source: Unknown
License: Unknown
Source: excamera.com/sphinx/gameduino/making....
License Note: The web page says it's Open Source, but doesn't state what license.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
SPI, with D9 as select. Pin 2 use optional.
