Freetronics 16x2 LCD & Keypad Shield

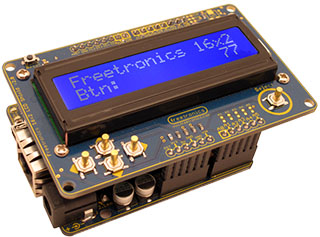

Photo: Freetronics

Shield URL: 16x2 LCD & Keypad Shield
Tags: lcd, buttons
Maker: Freetronics

16-character by 2-line display, 5 buttons and a controllable backlight

Works in 4-bit mode with the "LiquidCrystal" library included with the Arduino IDE, allowing you to control the LCD with a total of just 6 digital I/O lines.

The buttons provide "left", "right", "up", "down", and "select" while using just one analog input.

The LCD backlight is connected to D3 and can be controlled for on/off, brightness and flashing effects.

Features:

  • 16x2 LCD using HD44780-compatible display module (white characters on blue background).
  • 5 buttons on one analog input (A0).
  • LCD backlight with current limiting, brightness and on/off controllable by D3, can be moved to D2, D10, A1, A2, A3, A4 or A5 for easy project pin compatibility.
  • Recessed LCD, panel mount screw holes and button layout suitable for panel or cabinet mounting if desired.
  • Reset button.
  • Gold-plated PCB for maximum durability.
  • Overlay printed on both the top and the bottom.
  • Pins used by shield clearly marked.
  • LiquidCrystal library initialisation reference is printed on the bottom of the pcb for convenience.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: https://github.com/freetronics/16x2LC...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A0: Buttons
D3: LCD backlight
D4: LCD bit 4
D5: LCD bit 5
D6: LCD bit 6
D7: LCD bit 7
D8: LCD RS
D9: LCD Enable
