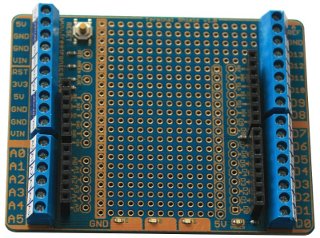

Freetronics Terminal Shield


Photo credits: unknown

Shield URL: Terminal Shield
Tags: connection, prototyping
Maker: Freetronics

Breaks out all the Arduino headers to handy screw terminals, making it really easy to connect external wires without using a soldering iron.

The center area of the shield is also a prototyping area, allowing you to add your own parts to suit your project. A blue "power" LED shows when your Arduino is powered up, and there are also red, green, and blue general-purpose LEDs with current-limiting resistors.

Features:

  • Gold-plated surface.
  • Large prototyping area with through-plated holes.
  • Clearly marked GND and 5V rails beside prototyping area.
  • Blue surface-mount "power on" LED.
  • 2 x 100nF power supply smoothing capacitors pre-fitted as surface-mount parts.
  • Reset button wired through to the Arduino.
  • 3 general-purpose surface-mount LEDs (red, green, blue) with current limiting resistors pre-fitted: drive HIGH to illuminate.
  • Overlay printed on both the top and the bottom of the board.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: https://github.com/freetronics/Termin...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No I/O pins specifically used: all broken out for user connections.
