Galileo 7 Music Shield

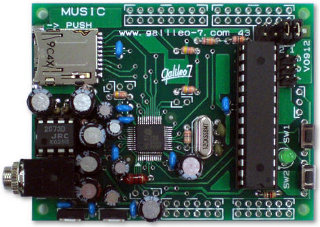

Photo: Galileo 7

Shield URL: Music Shield
Tags: music, sound, audio
Maker: Galileo 7

Music player for MP3, WMA, AAC, MID, WAV.

LSI: VS1053 (VLSI Solution)
Firmware: ATmega168

Open Source: Unknown
License: Unknown
Source: Unknown
