ITead Studio Colors Shield v1.1


Photo: ITead Studio

Shield URL: Colors Shield v1.1
Tags: led, output, display
Maker: ITead Studio

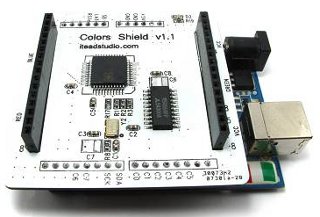

The Colors shield drives an RGB LED matrix using an LED driver chip that incorporates shift registers, data latches, constant current outputs and 64 x 256 gray level PWM for per color. Each channel can provide a maximum current of 60 mA.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic is provided as a PDF, but there is no license listed or design files available.
