ITead Studio ITDB02 LCD Shield v1.3

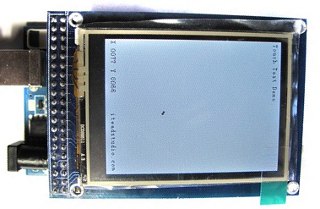

Photo: ITead Studio

Shield URL: ITDB02 LCD Shield v1.3
Tags: lcd, display, touch
Maker: ITead Studio

The ITDB02 LCD module is available in several different versions supported by this shield:

  • ITDB02-2.4: 2.4", 8-bit with touch sensor.
  • ITDB02-2.4WOT: 2.4", 8-bit without touch sensor.
  • ITDB02-3.2: 3.2", 16-bit.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pins D8 to D13 are jumper selectable betwen SD, Touch and 16 bit mode.
Combinations:
1.- 16 bit only
2.- 8bit + Touch
3.- 8bit + SD card
