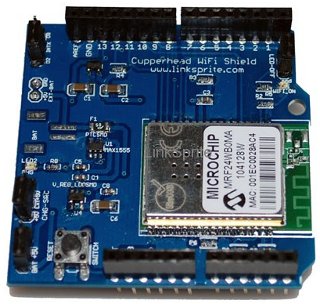

LinkSprite CupperHead WiFi Shield

Shield URL: CupperHead WiFi Shield
Tags: wifi, communications, networking
Maker: LinkSprite

This is a copy of the AsyncLabs WiShield, which is no longer made.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

Note:
D10: Slave select (SS)
D11: Master out, slave in (MOSI)
D12: Master in, slave out (MISO)
D13: Clock (SCK)

Interrupt uses only one of the following, depending on jumper setting:
D2: INT0
D8: DIG8
D9: LED (To regain use of this pin, remove the LED jumper cap)

If you setup the serial dataflash CS pin to use pin 10, then the WiFi module will not be usable. In order to use the dataflash and WiFi concurrently, the dataflash jumper CS pin must be set to pin 7.
