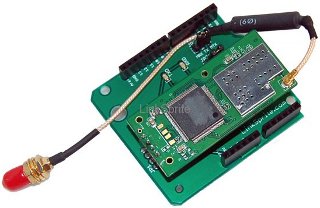

LinkSprite WiFi Shield


Photo credits: unknown

Shield URL: WiFi Shield
Tags: wifi, network, communications
Maker: LinkSprite

The LinkSprite WiFi Shield has built-in TCP/IP stack and all the WiFi related code. The Arduino just configures the WiFi parameters using AT command through the UART, or the user can simply treat the WiFi as a transparent serial port after some offline configuration.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
