Liquidware Button Shield


Photo credits: unknown

Shield URL: Button Shield
Tags:
Maker: Liquidware

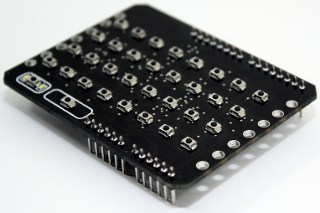

Shield with 32 buttons on it. It has a mode A or B selector, so you can wire up two of these directly to an Arduino.

  • 32 key buttons.
  • 1 caps lock with dual LEDs.
  • 1 space bar.
  • Underglow LED.

Open Source: Unknown
License: Unknown
Source: Unknown

 I do not yet have verified pin usage data for this shield.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
