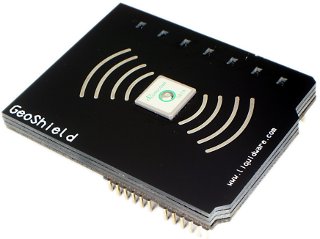

Liquidware GeoShield


Photo: Liquidware

Shield URL: GeoShield
Tags: gps, compass, accelerometer
Maker: Liquidware

The GeoShield integrates a GPS module, digital compass, and 3-axis accelerometer all onto the one shield.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
