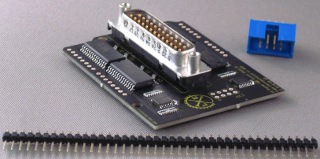

Logos Electromechanical 16-Channel High-Current Driver Shield

Shield URL: 16-Channel High-Current Driver Shield
Tags: output, control
Maker: Logos Electromechanical

Sixteen high current driver channels, each capable of sourcing 5A @ 30V. Over-temperature, over-voltage, and over-current protection is included on all channels. Shift register controls allows the shield to use only four pins and the shiftOut() library function. An expansion connector allows up to 25 shields to be daisy chained for as many as 400 channels.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: wiki.logos-electro.com/4x4-driver-shield

Note:
D7: Latch
D8: Master Reset (active low)
D12: Serial Clock
D13: Serial In
