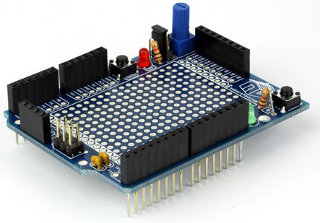

Maker Shed MakerShield

Shield URL: MakerShield
Tags: prototyping, button, led, input, output
Maker: Maker Shed

Unlike other prototyping shields on the market, the MakerShield allows you to create the circuits the way you want, and easily make as many changes as needed without having to solder. All the major components and pins of the MakerShield are user-assignable. This allows you to simply jump from the appropriate components header pin to any of the pins on the micro-controller. You can make as many changes as you want, and all without any soldering required.

• User definable components.

• Includes a Potentiometer, button, and (2) LEDs (needed in most circuits)

• 3.3v & 5v compliant

• ICSP header in the same location as the Arduino Boards

• Power filtering capacitors on 5v and 3.3v lines

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.makershed.com/ProductDetails.asp?...
License Note: The Eagle source files are available under the "More Details" tab on the product page.

Note:
All pin usage is user-definable.
