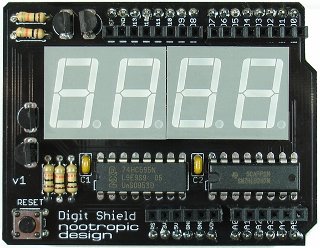

Nootropic Design Digit Shield


Photo: Nootropic Design

Shield URL: Digit Shield
Tags: display, output
Maker: Nootropic Design

The Digit Shield is a simple Arduino shield that provides a four digit 7-segment display.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0 US
Source: nootropicdesign.com/digitshield/desig...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
