Nootropic Design Video Experimenter Shield

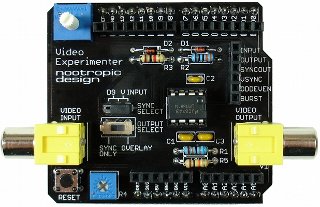

Photo: Nootropic Design

Shield URL: Video Experimenter Shield
Tags: video, output, display
Maker: Nootropic Design

The Video Experimenter shield is an Arduino shield that lets you do all kinds of experiments with video.

Features:

  • Overlay text and graphics onto a video signal from a camera, DVR, DVD player, VCR or any other source of composite video.
  • Capture low-res video image frames for display or video processing.
  • Perform object detection for computer vision projects.
  • Decode closed captioning or XDS (extended data services) data embedded in television broadcasts.
  • Works with NTSC (North America) or PAL (rest of the world) television standards.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: nootropicdesign.com/ve/design.html

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pin D9 is only used when generating a video sync signal from the Arduino.
