Renbotics Side Shield


Photo: Renbotics

Shield URL: Side Shield
Tags:
Maker: Renbotics

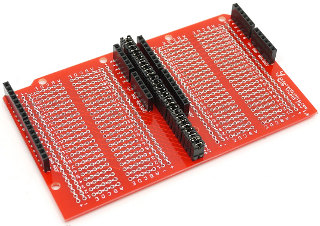

The Side Shield makes it easy to extend your Arduino shield stacking sideways, remap conflicting pins between shields, and simplify using 3.3V shields with 5V Arduinos or compatible.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5 AU
Source: https://github.com/renbotics/Side-Shield

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
