Rugged Circuits Gadget Shield

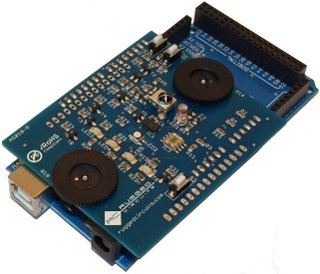

Photo: Rugged Circuits

Shield URL: Gadget Shield
Tags: acceleromater, ir, light, sensor, led, input
Maker: Rugged Circuits

The Gadget Shield includes:

  • A Freescale MMA7361L 3-axis accelerometer.
  • A high-brightness RGB LED.
  • 38kHz logic infrared detector.
  • Infrared LED.
  • Visible light sensor.
  • Four LEDs.
  • Two thumbwheel potentiometers.
  • Two general-purpose momentary-contact pushbuttons.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The product info page has excellent documentation on pin assignments and example code, including the schematic and a table that cross-references the pin usage against pin names on the Arduino Mega, Duemilanove, and the GATOR: www.ruggedcircuits.com/html/gadget_shield.html.
