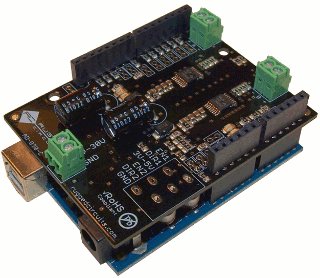

Rugged Circuits Motor Driver Shield

Shield URL: Motor Driver Shield
Tags: motor, h-bridge, output, control
Maker: Rugged Circuits

The Rugged Motor Driver is a dual H-bridge 30V motor driver using the Texas Instruments 2.8A DRV8801 devices. It can control one bipolar stepper motor or two brush DC motors.

Protection features include reverse voltage, overcurrent, overtemperature, electrostatic discharge, and shorted motor leads.

Stacking pin headers allow another shield to stack on top or bare wires inserted to make use of unused I/O pins.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
