Scattered Mind Lightuino Shield

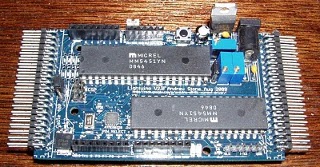

Photo: Andrew Stone

Shield URL: Lightuino Shield
Tags: led, control, output
Maker: Scattered Mind

Multiple LED driver.

Can be used either as a shield to an existing Arduino, or stand-alone by the addition of an ATmega328 MCU.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Any 4 digital pins, selectable.
