Schmelle2 BaroTemp Shield v2

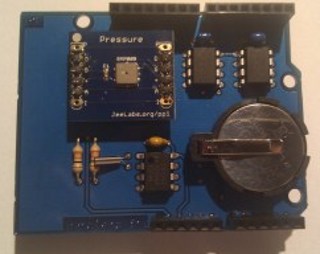

Photo: Schmelle2

Shield URL: BaroTemp Shield v2
Tags: pressure, sensor, eeprom, rtc
Maker: Schmelle2

Shield with BMP085 air-pressure/temperature sensor, DS1307 RTC and new in v2 additional 2*64KB EEPROM.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: schmelle2.de/wp/wp-content/uploads/20...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2 & D4 are optional

Did I make a mistake? Tell me!
