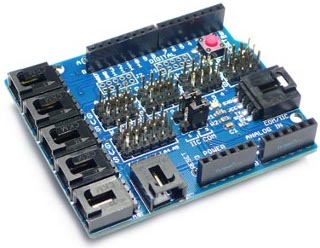

Seeed Studio Electronic Brick Shield


Photo: Seeed Studio

Shield URL: Electronic Brick Shield
Tags:
Maker: Seeed Studio

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos, and buttons.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
This shield is primarily a breakout board for alternative connectors, so it provides access to all I/O lines but does not necessarily require any of them in particular. You can use as many or as few of the pins as you like.
