Seeed Studio Music Shield

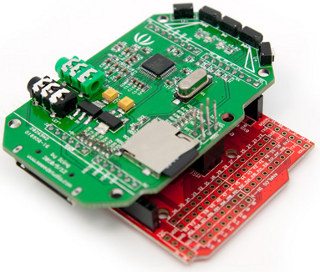

Photo: Seeed Studio

Shield URL: Music Shield
Tags: output, music, audio
Maker: Seeed Studio

iPod/iPhone dock compatible shield based on the VS1053b. Can play variety of music formats and even record sounds. Has the very same 30 pins connector as the iPod, making it possible to use the shield on any ipod compatible dock. You can output music to a external speaker, use the Play/pause, next song/previous song button on the dock or remote controller.

Open Source: Unknown
License: Unknown
Source: Unknown
