Seeed Studio Relay Shield

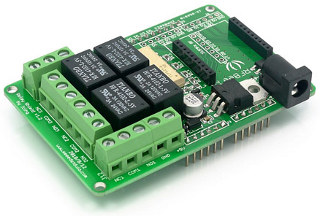

Photo by Seeed Studio

Shield URL: Relay Shield
Tags:
Maker: Seeed Studio

Relay Shield provides an easy ways for smart appliance control. It covers control to normal load circuits with 4 photo-coupled solid state relay capable of switching DC90W (or AC360VA). It also provides stand alone power supply, ZigBee-type wireless module socket, and native Arduino compatibility. It can control devices such as solenoid valves, lamps, motors and other high current or high voltage devices.

(v1.2b)

Open Source: Unknown
License: Unknown
Source: Unknown
