Seeed Studio Wiznet Ethernet Shield

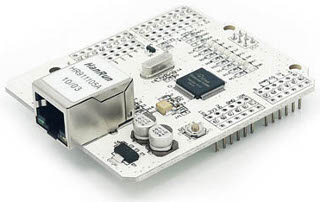

Photo: Seeed Studio

Shield URL: Wiznet Ethernet Shield
Tags: ethernet, network
Maker: Seeed Studio

Ethernet shield based on the Wiznet W5100 ethernet chip. Compatible with official Arduino Ethernet library and with added support for the Arduino Mega.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Same as for orginal, with support for MEGA
