Seeed Studio XBee Shield v1.1

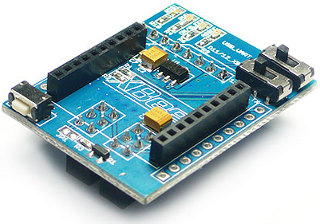

Photo: Seeed Studio

Shield URL: XBee Shield v1.1
Tags: xbee, communication
Maker: Seeed Studio

The XBee shield allows an Arduino to communicate wirelessly using Zigbee. It is based on the XBee module from MaxStream. The module can communicate up to 100 feet indoors or 300 feet outdoors (with line-of-sight). It can be used as a serial/usb replacement or you can put it into a command mode and configure it for a variety of broadcast and mesh networking options.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The XBee module is a serial device and communicates using software serial on D11 and D12.
