SK Pang Electronics EasyRadio Shield

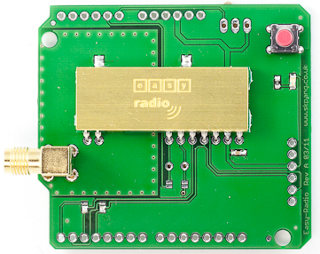

Photo: SK Pang Electronics

Shield URL: EasyRadio Shield
Tags: wireless, communication
Maker: SK Pang Electronics

Gives your Arduino simple wireless commumication. The embedded easy-Radio firmware handles all encode/decode functions and over air transmission of data.

Features:

  • Available in 434MHz or 868MHz
  • Right angle SMA antenna connection
  • User programmable frequency
  • User programmable power output
  • User programmable data rate
  • Power output 868MHz Europe 5mW. USA 1mW, 434MHz 10mW
  • Range
    • 868MHz - excess of 150m line of sight
    • 434MHz - excess of 250m line of sight

  • All user options via software commands, no mechanical changes
  • Compliant with ETS-300-220-3 & R&TTE directive
  • RSSI output - connected to A1 via solder joint

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic provided as a PDF under CC BY-SA 3.0, but I could not find any design files
