Snootlab Gate 0.5 Shield

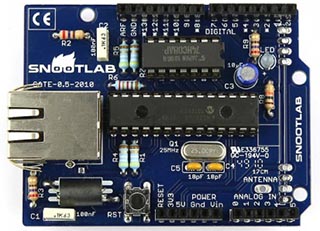

Photo: Snootlab

Shield URL: Gate 0.5 Shield
Tags: ethernet, network, rf
Maker: Snootlab

Ethernet shield based on the ENC28J60. Compatible with the Ethershield library.

Includes the footprint for a 434MHz receiver module.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic and PCB layout provided as PDF only. PCB layout states CC BY-SA 3.0, but no source files provided.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pin D8 not required for Ethernet: connected to the 434MHz receiver DATA line.
