Snootlab I2C Power Protoshield

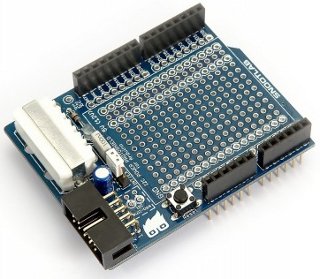

Photo: Snootlab

Shield URL: I2C Power Protoshield
Tags: prototyping, i2c, i2v
Maker: Snootlab

Designed for easy prototyping.

Features:

  • Soldering prototyping area
  • I2C bus with pull-up resistors footprint
  • Strengthened 3.3V and 5V on board and for Arduino through ATX PC power supply connector
  • ATX PC power supply 12V on board with protection through a secured soldered bridge
  • Power LED and resetĀ switch on top
  • 2Oz copper thickness to improve soldering / desoldering pads lifetime

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins specifically used by the shield: all available for user projects.
