Snootlab Rotoshield

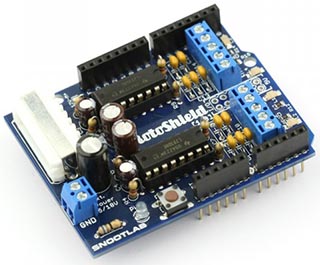

Photo: Snootlab

Shield URL: Rotoshield
Tags: motor, h-bridge
Maker: Snootlab

Dual L293 H-bridge motor driver.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: http://shop.snootlab.com/attachment.p...
