Solarbotics SB Protoshield

Shield URL: SB Protoshield
Tags:
Maker: Solarbotics

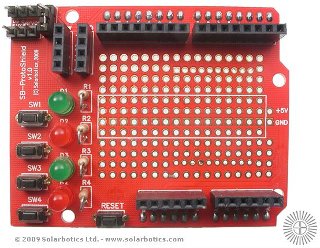

The Solarbotics SB-ProtoShield kit mates with the USB Arduino and Freeduino SB boards, and sets you up with:

• A small soldering area.

• Four general indicator LEDs.

• Four general-purpose Push button switches, outputs biased low.

• Two Servo headers with selectable power supply routing.

• A XBee-compatible footprint prewired for power.

• A reset switch.

• All Arduino / Freeduino SB I/O pins, including 5V, Gnd, and Raw pins are brought to the top level.

  Open Source: Unknown
  License: Unknown
  Source: Unknown


Note:
D9 & D10 hardware "PWM" lines on the Arduino are used on this shield for precise servo control. Buttons and LEDs are tied to the extra 4 position female headers on-board and can be mapped to any of the I/O pins.
