Sparkfun CAN-Bus Shield

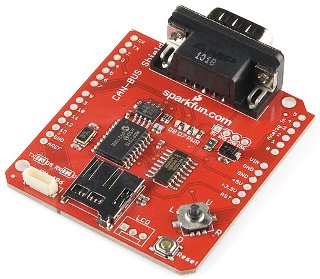

Photo: Sparkfun Electronics

Shield URL: CAN-Bus Shield
Tags: obd, car, engine, communications
Maker: Sparkfun

This shield gives the Arduino CAN-Bus capability for communication with vehicle engine management systems. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. CAN connection is via a standard 9-way sub-D for use with OBDII cable. Ideal for automative CAN application. The shield also has a uSD card holder, serial LCD connector and connector for an EM406 GPS module.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.sparkfun.com/datasheets/DevTools/...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
