Sparkfun MegaShield

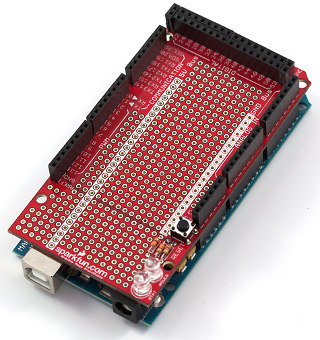

Photo: Sparkfun Electronics

Shield URL: MegaShield
Tags: prototyping
Maker: Sparkfun

Prototyping shield for the Arduino Mega. Provides a prototyping area, two general-purpose LEDs, and reset button. The shield also works with small breadboards if you don't want to solder to the prototyping area.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
No pins specifically used by the shield: all available for user projects.
