Sparkfun Musical Instrument Shield

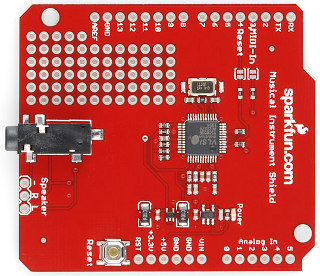

Photo: Sparkfun Electronics

Shield URL: Musical Instrument Shield
Tags: sound, music, output
Maker: Sparkfun

Provides access to the VS1053 MP3/MIDI decoder hardwired in realtime MIDI mode. The VS1053 provides 31 note polyphony in 128 GM1 standard instruments along with 50 percussion instruments.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.sparkfun.com/products/10587

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2 - VS1053 TX
D3 - VS1053 RX
D4 - VS1053 RESET
