SWFLTEK FRAM Shield


Photo credits: unknown

Shield URL: FRAM Shield
Tags:
Maker: SWFLTEK

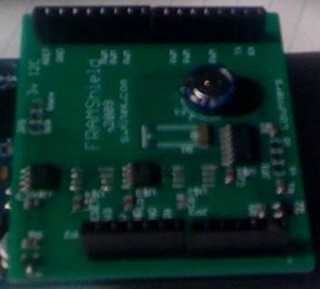

Note: the image is terrible! Can anyone supply a better one?

Up to 512K non-volatile, high speed, high endurance, static memory on an Arduino compatible shield.

  • Two Wire Interface, with 5 to 3.3 volt level translator.
  • Read/write @ 35 Kbytes/second, with no wait states or write cycle limits.
  • Real Time Clock option.
  • Easy to use library.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
