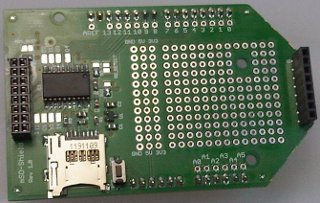

Watterott mSD Shield

Photo credits: unknown

Shield URL: mSD Shield
Tags: storage, display, sd, lcd, touch
Maker: Watterott

Shield providing a microSD socket and an optional TFT-touch-Display.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
Pin usage depends on the options fitted to the shield. TFT and/or touch-unit need more pins than just a mSD.

D13 SCK
D12 MISO
D11 MOSI
D 9 LCD_LED
D 8 LCD_RESET
D 7 LCD_CS
D 6 ADS_CS
D 5 ADS_BUSY (default: NC (jumper open))
D 4 SD_CS (default: D4, can be changed to D10 (by jumper))
D 3 ADS_IRQ (default: NC (jumper open))

LCD: D7, D8, D9, D11, D12, D13
Touch contoller: D6, D11, D12, D13
SD card: D4, D11, D12, D13
