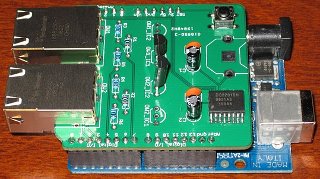

Wavical Technologies OneWire Shield


Photo credits: unknown

Shield URL: OneWire Shield
Tags: onewire, rtc
Maker: Wavical Technologies

Includes:

  • 2 Independent OneWire RJ-45 ports with activity LED
  • 2 additional LEDs on the RJ-45 socket
  • Battery-backed RTC
  • 4 spots for local OneWire devices (2 on each network)

Open Source: Yes, OSHW-compliant
License: GPL v3
Source: code.google.com/p/gfb/source/browse/#...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses 4 pins: 2 for independent 1-Wire networks, and two additional LEDs on the Tyco RJ45 connectors. Includes space for the Dallas 3231 RTC.
