Wingshield Industries ScrewShield

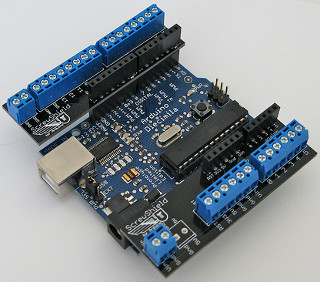

Photo: Wingshield Industries

Shield URL: ScrewShield
Tags: breakout, terminal
Maker: Wingshield Industries

The ScrewShield is a "wing-format" shield that extends the Arduino pins to sturdy, secure, and dependable screw terminal blocks. You even get a few bonus terminals for extra GND and power!

No header pins are used by the shield itself: they are all exposed for your own use.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: wingshieldindustries.com/engineering-...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
