Wise Time Dual Bi-Color LED Matrix Shield

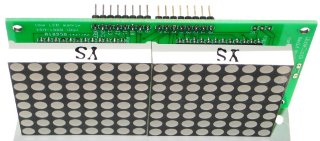

Photo: Wise Time

Shield URL: Dual Bi-Color LED Matrix Shield
Tags: led, display
Maker: Wise Time

Provides LED display with 8x16 red/green/yellow pixels.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: timewitharduino.blogspot.com/2010/02/...
