Wise Time LED Matrix Shield


Photo credits: unknown

Shield URL: LED Matrix Shield
Tags: led, display, ir
Maker: Wise Time

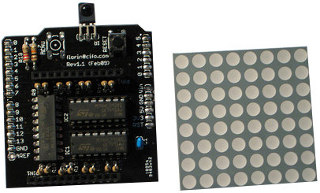

The LED matrix provides a display with a resolution of 8x8 red/green/yellow pixels. In addition, it also has an on-board push button and an infrared receiver. This combination allows the device to receive commands and to output feedback to the user. The LED matrix shield is used mainly in Wise Clock.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: timewitharduino.blogspot.com/2009/09/...
