Zach Hoeken Danger Shield

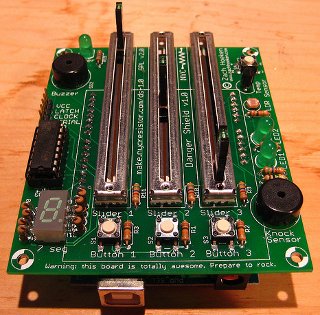

Photo: Zach Hoeken

Shield URL: Danger Shield
Tags: input, output, button, sound, temperature, light
Maker: Zach Hoeken

Provides a variety of useful inputs and outputs for various projects.

  • Three linear slide potentiometers connected to Arduino analog pins A0, A1, and A2.
  • Red and yellow LEDs connected to digital pins 5 and 6 (PWM pins) so you can easily vary their brightness.
  • Three momentary push buttons connected up to the Arduino's digital pins D10, D11, and D12. Those lines will go low when the buttons are pressed.
  • A photocell and a temperature sensor, both with analog outputs, are connected to the analog pins A3 and A4, respectively.
  • An 8-bit shift register set up to control a blue 7-segment LED.
  • Two buzzers. One is used as a speaker, the other is connected to analog pin A5 and can be used as a knock sensor.


See also wiki.nycresistor.com/wiki/Danger_Shield_1.0

Open Source: Yes, OSHW-compliant
License: GPL v2
Source: sourceforge.net/project/showfiles.php...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
